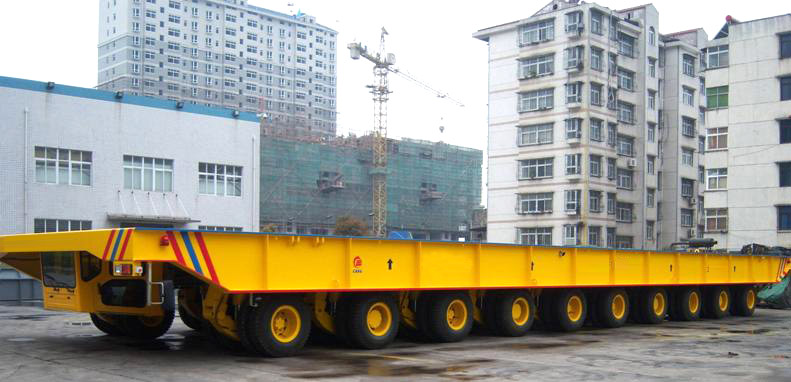

GW 550 Shipyard Transporter
GW 550 Shipyard Transporter
Payload Norminal: 550T

As a professional manufacturer of heavy duty shiopyard transporter, Global Win provide three series of shipyard transporters. They are shipyard transporter series A, shipyard transporter series B, and shipyard transporter series C. The capacity of the transporters range from 75 tons to 1,000 tons.


Our transporter adopts many high technologies introduced from Germany or self-innovated by our R&D team like hydraulic driving, hydraulic pressure suspension, hydraulic self propelled steering and self adjustment for the vehicle frame; whose functions are almost controlled by microcircuit. As enjoying the advantages like heavy load capacity (75ton-1000ton), 360℃ flexible steering, self lifting and descending, our transporters are widely used for transporting large-scale concrete components, hull subsection and engine groups in steel works, bridge construction and shipyards.


Product Features
● POWER SYSTEM
Static hydraulic drive
Hydraulic electron composite turning
Overload and sliding-proof control
● Turning system
Electron control multi-mode turning, optional operation mode: common drive, lateral drive, circle drive; Turning windage alarm, steering wheel halting, each wheel shelf can be realized (-) 100°~ 100°turning.
● Suspension system
Hydraulic simultaneously lifting system
Three or four pants support, the support-mode can be manual converted
Double-loop disrepair safety valve
Gas brake and halting brake.
● The cab
Adjustable chair, air-condition and heating system
LCD screen and indicators show, operate conveniently
MCU adopts special Engineering-vehicle controller and mature function module
Fore and Rear Cabs, mutually locked function for driving
● Other
Drum brake and spring brake
Reliable Structure Design (Finites analysis and stress-strain testing)
Vehicles Jointing Function & Remote Control Function is optional
