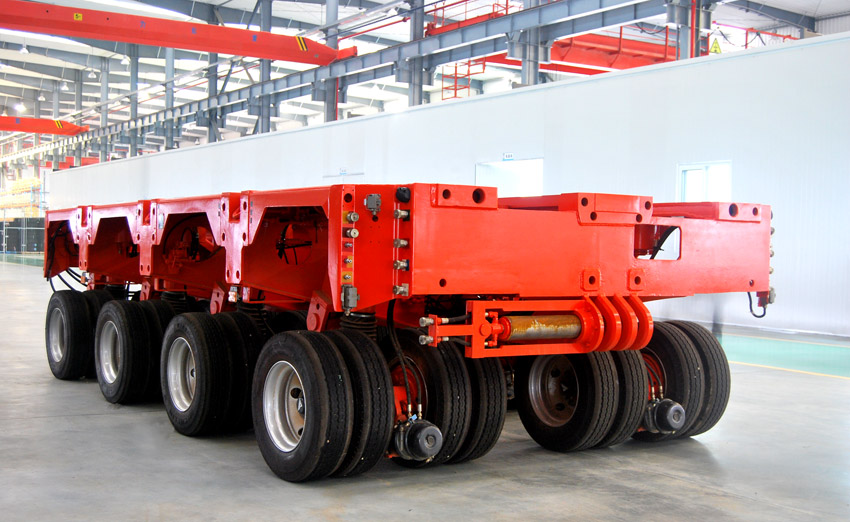

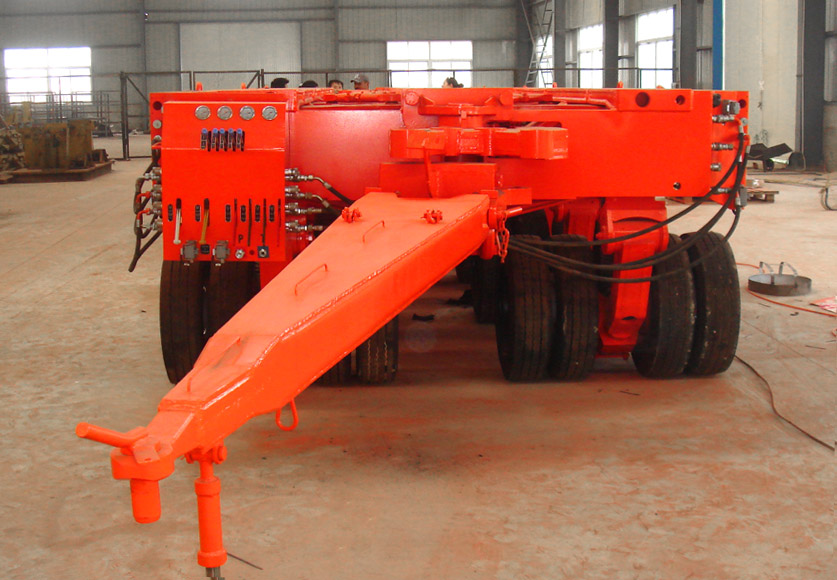

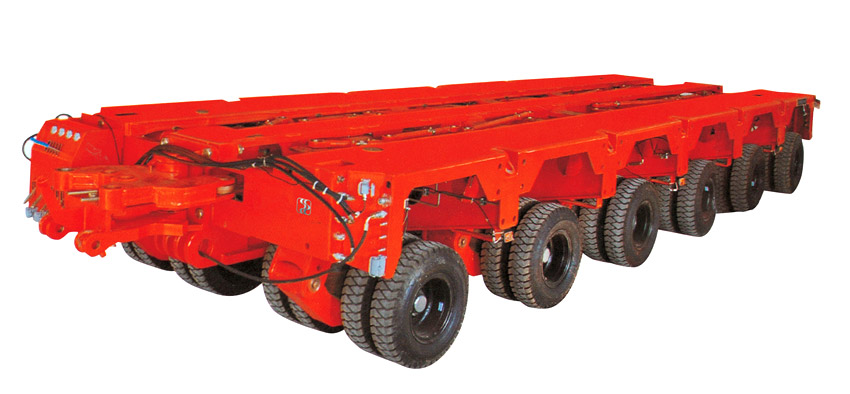

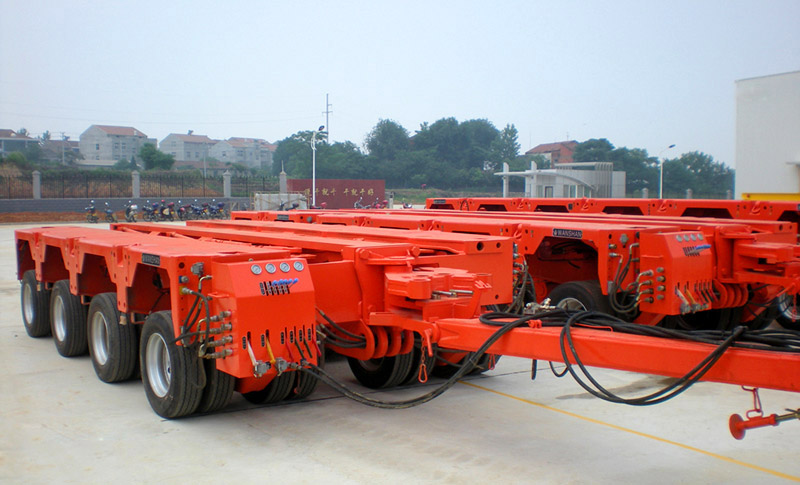

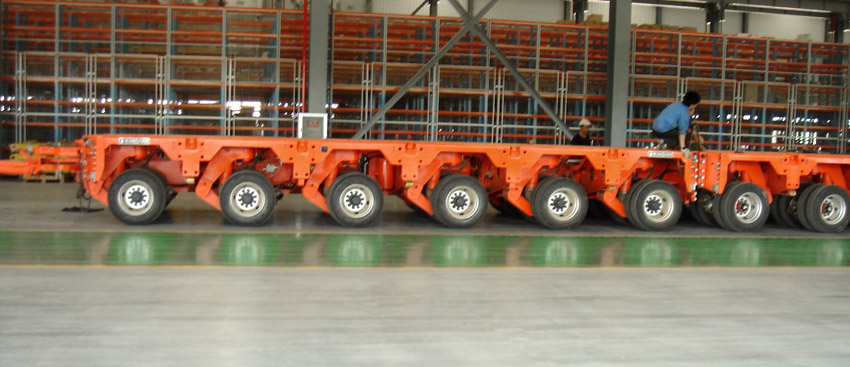

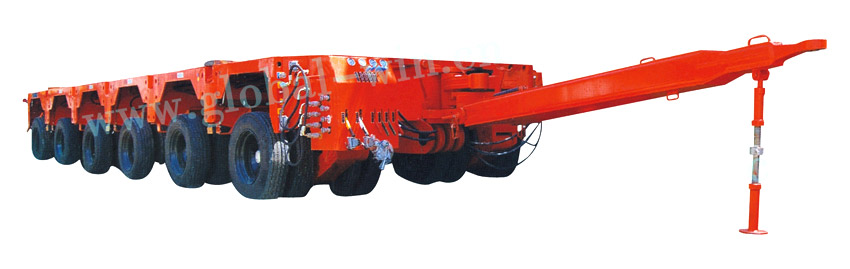

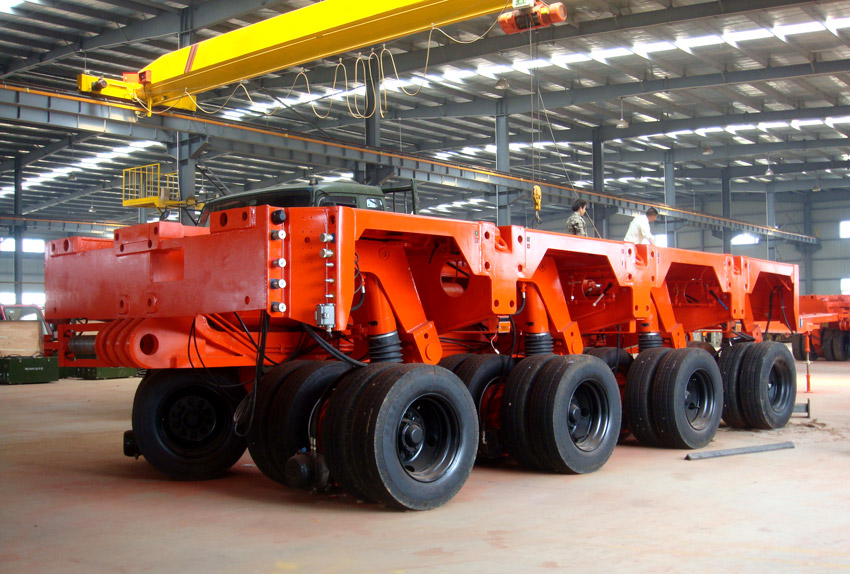

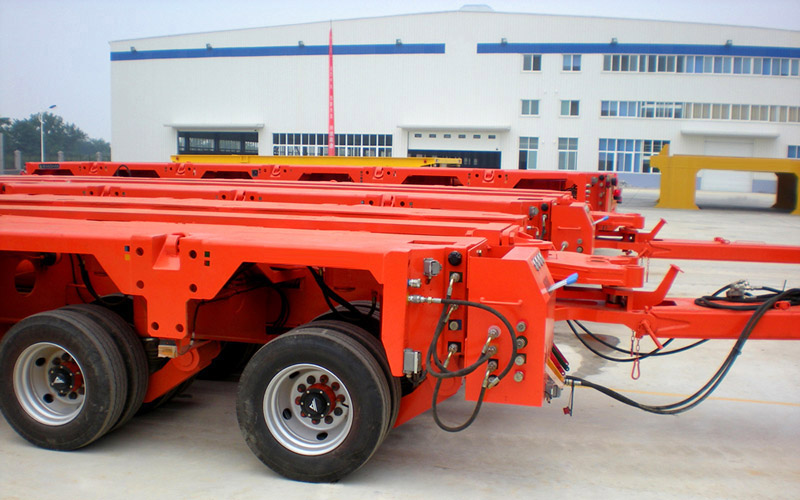

Hydraulic Modular Transporter with Draw Bar

GW series hydraulic combination trailer is applied to transport large-sized and supper heavy cargo in the fields such as electric power, metallurgy chemical industry, construction and logistics.

The 3 meters wide module hydraulic trailer can achieve two transport modes, trailer towing and semi-trailer towing, bogie frame with truck, the max. speed of such trailer could reach 40Km/h. This towing way can get the max. draft load, it is especially used in heavy duty transportation with low speed; Semi-trailer towing can reduce the full length of the vehicle and the min. turning diameter while the max.

The hydraulic trailer generally includes main frame, hydraulic suspension, steering system, engine unit, hydraulic systems (include hydraulic steering and hydraulic lifting), braking system, vehicle electrical system, connecting beams (flat beam or telescopic beam) and subsidiary devices.
