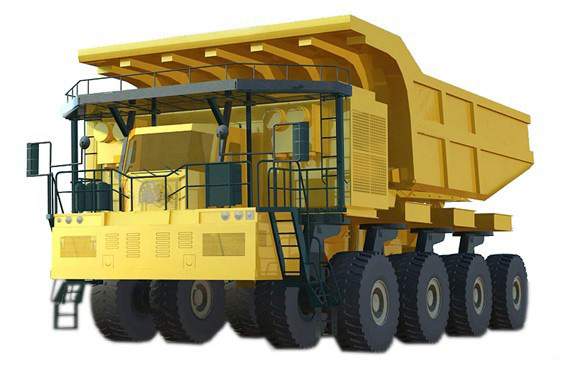

GW220E AC Drive Mining Truck
1, Steering system adopts full hydromachanival steering method, using draglinks to achieve the coordinate between steering trapezium and the axis steering angle, with maximum steering error below 3°;
2, Adopts independent hydraulic suspension, two sets of tires match one suspension, can achieve smooth running.
3, With single girder and box structure, the frame has features of balanced proportion, symmetry and load uniformity etc.

Main specification
Drive line 16x16 All Wheel electric Drive
Overall length 15,000 mm Overall width 7,200 mm
Overall height(Unloaded) 6,730 mm Payload 220 Ton/242Ton
